Gears Machining in Robotics
Gears are indispensable components in robotics, serving as the mechanical backbone that enables precise motion, torque transmission, and speed control. From industrial robotic arms to autonomous mobile robots (AMRs), gears translate motor power into functional movement, making them critical for efficiency, durability, and performance. Let us dive deep into the world of gears in robotics, exploring their types, materials, manufacturing processes, functional parameters, and real-world applications. Whether you're a robotics engineer or enthusiast, understanding these elements can optimize your designs for cutting-edge robotic systems.
What Are Gears in Robotics?
In robotics, gears are rotating mechanical parts with teeth (or cogs) that mesh with other toothed components to transmit torque and adjust speed. They allow robots to perform tasks ranging from delicate surgical operations to heavy-duty industrial lifting. By altering the gear ratio—such as a 10-tooth input gear driving a 50-tooth output gear—engineers can reduce speed by a factor of 5 while increasing torque fivefold, tailoring performance to specific needs.
Functions of Gears in Robotics
Torque Amplification: Gears increase the force output of motors, enabling robots to lift or move heavy loads.
Speed Regulation: They adjust rotational speed, balancing precision and power for tasks like wheel rotation or joint articulation.
Motion Direction: Gears like bevel or worm types change motion paths (e.g., 90° turns), essential for complex robotic joints.
Precision Control: High-quality gears ensure minimal backlash and smooth operation, critical for tasks requiring accuracy.
Load Distribution: They spread mechanical stress across systems, enhancing durability and reducing wear on motors.
Types of Gears Used in Robotics
Different robotic applications demand specific gear types, each with unique configurations and advantages. Below are the most common types used in robotics:
Spur Gears: Featuring straight teeth parallel to the shaft, these are simple, cost-effective, and efficient for basic speed reduction. They're common in mobile robot drivetrains.
Helical Gears: With angled teeth, helical gears offer smoother, quieter operation due to gradual tooth engagement, ideal for high-speed robotic arms.
Bevel Gears: These conical gears shift motion direction (typically 90°), used in robotic wrists or multi-axis joints.
Worm Gears: Comprising a worm (screw) and wheel, they provide high reduction ratios and self-locking, perfect for grippers or stable positioning.
Planetary Gears: A compact system with a sun gear, planet gears, and ring gear, delivering high torque for robotic gearboxes or exoskeletons.
Rack and Pinion: Converts rotary motion to linear motion, widely used in robotic steering or linear actuators.
Functional Parameters of Gears in Robotics
Gear performance in robotics hinges on specific parameters that dictate their suitability. Here's a table summarizing key parameters for common gear types:
| Gear Type | Teeth Configuration | Gear Ratio Range | Torque Capacity (Nm) | Efficiency (%) | Typical Robotics Application |
|---|---|---|---|---|---|
| Spur Gears | Straight, Parallel | 1:1 to 10:1 | 10–500 | 94–98 | Mobile robot wheels |
| Helical Gears | Angled, Parallel | 1:1 to 15:1 | 20–1000 | 90–95 | High-speed robotic arms |
| Bevel Gears | Conical, Intersecting | 1:1 to 6:1 | 15–800 | 90–94 | Robotic wrist joints |
| Worm Gears | Screw + Wheel | 10:1 to 100:1 | 5–300 | 50–90 | Grippers, stable actuators |
| Planetary Gears | Sun + Planets + Ring | 3:1 to 50:1 | 50–2000 | 92–97 | Exoskeletons, gearboxes |
| Rack and Pinion | Straight Rack + Pinion | N/A (Linear) | 10–400 | 90–95 | Linear motion systems |
Notes: Torque capacity varies with material and size (e.g., a 50 mm steel spur gear vs. a 20 mm plastic one). Efficiency drops with wear or misalignment, so precision manufacturing is key.
Materials for Gears in Robotics
The choice of material impacts CNC gear machining strength, weight, and durability. Robotics employs a range of metals and polymers, tailored to specific tasks:
Steel: High-strength carbon or alloy steel (e.g., 4140) for industrial robots handling heavy loads (torque > 500 Nm).
Aluminum: Lightweight alloys (e.g., 6061, 7075) for mobile robots, reducing energy consumption (density ~2.7 g/cm³).
Stainless Steel: Grades like 316 offer corrosion resistance for medical or marine robots (e.g., underwater ROVs).
Titanium: High strength-to-weight ratio (e.g., Ti-6Al-4V, 4.43 g/cm³) for aerospace or exoskeleton gears machining.
Plastic (Nylon): Lightweight (1.14 g/cm³), cost-effective for prototypes or low-load tasks (torque < 50 Nm).
Brass: Low friction (coefficient ~0.3) for small, precision actuators in robotics.
Manufacturing Processes for Robotic Gears
Precision manufacturing ensures gears machining meet robotics' stringent demands. Common methods include:
CNC Machining: Milling or hobbing for precise tooth profiles (tolerances ±0.01 mm), ideal for custom steel or titanium gears.
Forging: Enhances grain structure for high-strength steel gears (e.g., yield strength > 800 MPa).
3D Printing: Additive manufacturing for complex, lightweight designs (e.g., nylon planetary gears).
Powder Metallurgy: Near-net-shape gears with minimal machining, suitable for brass or small steel components.
CNC machining dominates due to its versatility, producing gears from 10 mm to 200 mm in diameter with surface finishes as smooth as Ra 0.8 µm.
Applications of Gears in Robotics
Gears enable diverse robotic functions across industries:
| Application | Gear Type | Material | Key Requirement |
|---|---|---|---|
| Robotic Arms | Planetary, Helical | Steel, Titanium | High torque (500–2000 Nm) |
| Mobile Robots | Spur, Helical | Aluminum, Plastic | Lightweight (density < 3 g/cm³) |
| Grippers | Worm, Spur | Brass, Steel | Self-locking, precision |
| Medical Robots | Harmonic, Planetary | Stainless Steel | Zero backlash, corrosion resistance |
| Aerospace Robotics | Bevel, Planetary | Titanium, Aluminum | High strength-to-weight ratio |
Innovations in Robotic Gears
Advancements in gear technology are shaping robotics' future:
Harmonic Drives: Zero-backlash systems for ultra-precise robotic joints (backlash < 0.001°).
Lightweight Composites: Carbon-fiber-reinforced gears reduce weight by 30–50% compared to steel.
Smart Gears: Embedded sensors monitor wear and torque in real-time, improving maintenance.

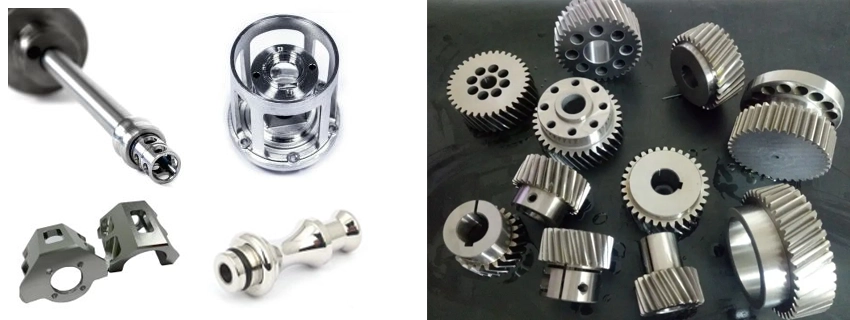

KeSu: Expert Partner for Custom Gear Parts in Robotic
KeSu specializes in manufacturing high-quality custom Robotic Gear parts, using advanced CNC machining and prototyping techniques. With a focus on precision, durability, and custom solutions, we cater to diverse custom parts machining requirements. Partner with KeSu for reliable, cost-effective components that enhance performance and meet strict industry standards.
Conclusion
Gears in robotics are more than mechanical parts—they’re enablers of innovation. From spur gears powering mobile robots to planetary systems driving exoskeletons, their design, material, and manufacturing define robotic capabilities. As technology advances, gears will continue evolving, offering greater precision, efficiency, and adaptability for the robots of tomorrow.
FAQs About Gears in Robotics
What's the most common gear type in robotics?
Spur gears are widely used due to their simplicity and efficiency, especially in mobile robot drivetrains.
Why use planetary gears in robotics?
Planetary gears offer high torque in compact spaces (e.g., 50:1 ratio in a 50 mm diameter), ideal for gearboxes.
How does material choice affect robotic gears?
Materials like titanium provide strength (yield > 900 MPa) and lightness, while plastics reduce cost and weight for low-load tasks.
What's the advantage of CNC machining for gears?
CNC machining delivers precision (tolerances ±0.01 mm) and versatility, crafting gears from steel to nylon.
