Impeller vs. Propeller: Purpose, Design, Tolerances
Discover the differences and machining requirements for impellers and propellers with KeSu's high-precision CNC services, offering tolerances up to ±0.01 mm and lead times from 1 day. We specialize in advanced CNC machining and rapid prototyping, delivering precision components for industries such as aerospace, automotive, robotics, and marine.
Impellers and Propellers in CNC Machining
Impellers and propellers are essential rotating components used across various industrial applications, but they serve distinct purposes and require different manufacturing techniques. We leverage over 15 years of expertise and more than 100 advanced CNC machines, including four-axis and five-axis machining centers, to produce these parts with unmatched precision. This article provides a detailed comparison to help engineers, manufacturers, and designers understand their differences, machining parameters, and applications.
What is an Impeller?
An impeller is a rotating component typically used in pumps, compressors, turbines, and fans. It transfers energy to fluids—liquids or gases—to generate pressure or flow, often operating within a closed or semi-closed housing. Impellers feature complex, multi-blade designs optimized for fluid dynamics and energy efficiency, making them ideal for high-precision applications.
Typical Materials: Titanium alloy (Ti-6Al-4V), stainless steel (316L), aluminum (6061).
Dimensions: Diameter up to 250 mm, height up to 120 mm, with 6-12 blades.
Tolerances: ±0.01 mm to ±0.01 mm.
Surface Finish: Roughness (Ra) as low as 0.4 µm.
Lead Time: Prototypes in 1-2 days, small batches in 3-5 days.
Equipment: Five-axis CNC machining centers (e.g., GMU-800, HEM500U) for complex curves and cavities.
Inspection: CONTURA Coordinate Measuring Machine (CMM) for blade angle, curvature, and dimensional accuracy; surface roughness measured with profilometers.
Applications: Aerospace turbines, industrial pumps, medical devices, and more.
What is a Propeller?
A propeller is a rotating component used for propulsion in open environments, such as ships, aircraft, or wind turbines. It generates thrust by rotating in air or water, pushing the vehicle or system forward. Propellers typically have simpler, 2-4 blade designs optimized for thrust and efficiency in open fluids, requiring precision but less complexity than impellers.
Typical Materials: Aluminum, bronze, or composites.
Dimensions: Diameter up to 300 mm, 2-4 blades, blade length up to 150 mm.
Tolerances: ±0.02 mm.
Surface Finish: Roughness (Ra) around 1.6 µm.
Lead Time: Prototypes in 2-3 days, small batches in 5-7 days.
Equipment: Four-axis or five-axis CNC machining centers (e.g., JDG-2000T) for blade shaping.
Inspection: Three-coordinate measuring machines for blade angles and geometry; hardness testing for durability.
Applications: Marine propulsion, wind turbines, aerospace systems, and more.

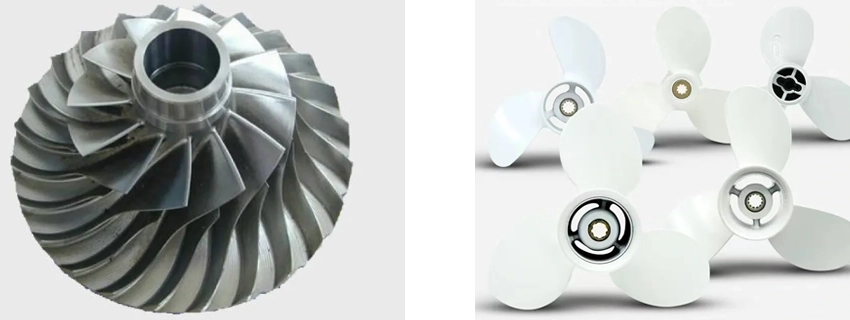

Key Differences Between Impellers and Propellers
While both impellers and propellers are rotating components, their design, function, and machining requirements differ significantly. The following table provides a detailed comparison to guide your manufacturing decisions:
| Parameter | Impeller | Propeller |
| Purpose | Energy transfer in pumps, compressors, turbines | Propulsion in ships, aircraft, wind turbines |
| Design Complexity | Highly complex, multi-blade, curved surfaces | Simpler, 2-4 blades, spiral or inclined shapes |
| Typical Materials | Titanium, stainless steel, aluminum | Aluminum, bronze, composites |
| Tolerances | ±0.01 mm to ±0.01 mm | ±0.02 mm |
| Surface Finish (Ra) | 0.4 µm | 1.6 µm |
| Lead Time (Prototypes) | 1-2 days | 2-3 days |
| CNC Equipment | Five-axis machining centers | Four-axis or five-axis machining centers |
| Applications | Aerospace turbines, industrial pumps | Marine propulsion, wind turbines |
Machining Considerations for Impellers and Propellers

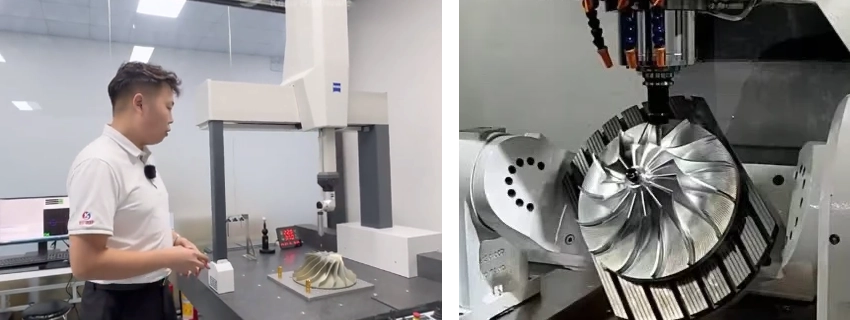

We use advanced CNC machining techniques to produce impellers and propellers with exceptional precision and efficiency. Our state-of-the-art equipment, such as the GMU-800 and HEM500U five-axis machining centers, ensures complex geometries are machined accurately, while our CONTURA CMM and roughness testers guarantee quality down to ±0.01 mm tolerances and Ra 0.4 µm finishes for impellers, and ±0.02 mm tolerances for propellers.
For impellers, we employ high-speed cutting with hard alloy ball-end mills at 5000 RPM and feed rates of 300 mm/min, minimizing deformation on materials like titanium and stainless steel. Propellers, made from aluminum or bronze, use larger-diameter end mills at 3000 RPM and 400 mm/min, ensuring durability and efficiency. Each part undergoes rigorous inspection using three-coordinate measuring machines and surface profilometers to meet industry standards.
Applications Across Industries
Our precision machining services for impellers and propellers serve a wide range of industries, delivering high-performance components for critical applications:
Aerospace: Turbine impellers for jet engines, requiring high strength, precision, and lightweight materials like titanium.
Automotive: Cooling system impellers and turbocharger components, ensuring durability and efficiency under high temperatures.
Marine: High-performance propellers for ships, optimizing thrust and efficiency in open water environments.
Industrial: Pump and compressor impellers for manufacturing processes, enhancing productivity and reliability.
Medical: Impellers for medical pumps, with biocompatible materials and tight tolerances for life-saving devices.
Why Choose KeSu for Impeller and Propeller Machining?
KeSu stands out as a leader in high-precision CNC machining and rapid prototyping, offering:
Lead times starting at 1 day for prototypes, ensuring rapid development for urgent projects.
Tolerances as tight as ±0.01 mm for impellers and ±0.02 mm for propellers, meeting aerospace, marine, and industrial standards.
Materials tailored to specific needs, including titanium, stainless steel, aluminum, bronze, and composites.
Comprehensive quality control with advanced inspection tools like CONTURA CMM and surface profilometers.
Located in Dongguan, China, with convenient logistics and cost-effective solutions for global clients, having served industry leaders like Honda, Mitsubishi, and BYD.
Frequently Asked Questions (FAQ)
What is the primary difference between an impeller and a propeller?
An impeller transfers energy to fluids in closed systems like pumps and turbines, while a propeller generates thrust for propulsion in open environments like ships and aircraft.
Can KeSu achieve tolerances of ±0.01 mm for impellers?
Yes, our advanced five - axis CNC machines and inspection tools ensure tolerances as tight as ±0.01 mm for impellers, meeting aerospace and industrial standards.
What materials are used for propeller machining at KeSu?
We use aluminum, bronze, and composites for propellers, ensuring durability and corrosion resistance for marine and aerospace applications.
How long does it take to produce a prototype impeller or propeller?
Prototype impellers can be delivered in 1 - 2 days, while propellers typically take 2 - 3 days, depending on complexity and material requirements.
What equipment does KeSu use for high - precision machining?
We utilize five - axis machining centers like GMU - 800 and HEM500U, four - axis centers like JDG - 2000T, and precision inspection tools like CONTURA CMM for high - precision results.
Can KeSu handle large - scale production of impellers and propellers?
Yes, we offer both rapid prototyping and large - scale production, with lead times optimized for small batches (3 - 7 days) and high - volume orders (7 - 14 days), depending on specifications.
Are there surface finish options for impellers and propellers?
Yes, we provide surface finishes like polishing, anodizing, and sandblasting, with impellers achieving Ra 0.4 µm and propellers reaching Ra 1.6 µm, tailored to your needs.
