Impellers in Power Systems: Design, Function, and Innovation
Power systems are the backbone of modern society, driving industries, transportation, and energy production. Impellers play an indispensable core role in these systems, converting mechanical energy into fluid motion or thrust with precision and efficiency. This article explores their function, design, and applications in CNC machining, with KeSu delivering high-precision impeller machining solutions with tolerances up to ±0.01 mm and lead times starting from 1 day for aerospace, automotive, and renewable energy sectors.
Impellers: Definition, Structure, and Working Principles
Impellers are rotating components critical to various power systems, designed to transfer energy between fluids and mechanical systems. Their intricate design and functionality make them essential for high-precision applications.
Definition and Basic Structure: An impeller machining consists of a hub, blades, and sometimes a shroud, forming a rotor that interacts with fluids. Its shape—radial, axial, or mixed-flow—varies to meet diverse power system needs, with diameters ranging from 50 mm to 500 mm and blade counts from 4 to 12, depending on application.
Diversity in Shape and Size: Impellers exhibit rich diversity, such as backward-curved, forward-curved, or straight blades, with widths from 20 mm to 200 mm. This adaptability ensures optimal performance in pumps, compressors, and turbines, machined to ±0.01 mm tolerances at KeSu using five-axis CNC centers like GMU-800.
Working Principles: Based on fluid dynamics, impellers use rotation to create centrifugal force and momentum transfer, interacting with fluids to generate pressure, flow, or thrust. For instance, centrifugal force accelerates fluid outward in pumps, while momentum transfer boosts gas pressure in compressors, with efficiencies up to 85% in optimized designs.
Key Mechanisms: Centrifugal force drives fluid radially, while Bernoulli's principle and momentum transfer enhance energy conversion, critical for high-speed operations at 3000-12,000 RPM, depending on system requirements.
Impellers in Diverse Power Systems: Applications and Functions
Impellers are pivotal in various power systems, each tailored to specific needs through KeSu's precision CNC machining and rapid prototyping, ensuring lead times from 1-2 days for prototypes.
Pumps (Centrifugal and Axial):

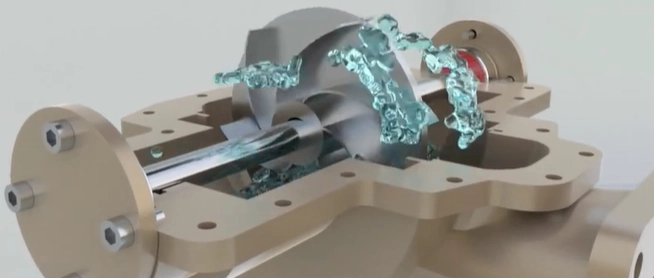

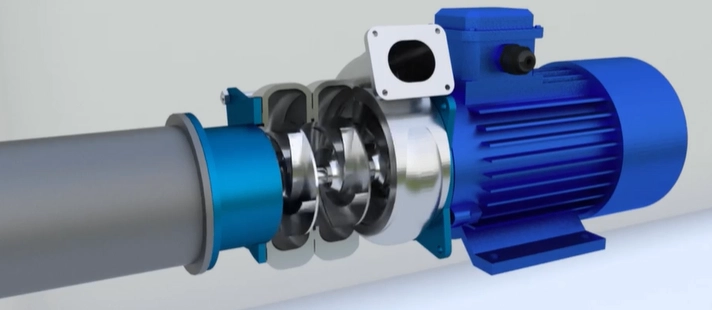

Centrifugal Pumps: Impellers are central, converting mechanical energy into kinetic and pressure energy in fluids. In a centrifugal pump, the impeller rotates at 1800-3600 RPM, achieving flows of 50-5000 GPM and heads up to 300 meters, used in chemical processing (e.g., transporting acids) and urban water supply.
Axial Pumps: Featuring axial-flow impellers with 4-8 blades, these pumps handle high flows (up to 10,000 GPM) at low heads (5-30 meters), ideal for agricultural irrigation and wastewater treatment, with efficiencies of 75-85%.
Compressors (Centrifugal and Screw):
Centrifugal Compressors: Impellers machining perform multi-stage compression, rotating at 10,000-30,000 RPM to increase gas pressure (up to 10:1 pressure ratio), used in air compression stations and natural gas pipelines, with efficiencies of 80-90%.
Screw Compressors (with Impeller Support): Impellers assist screw rotors, enhancing compression ratios (up to 8:1) and efficiency (75-85%) in refrigeration systems and industrial gas compression, machined with ±0.01 mm precision at KeSu.
Turbines (Gas and Hydro):

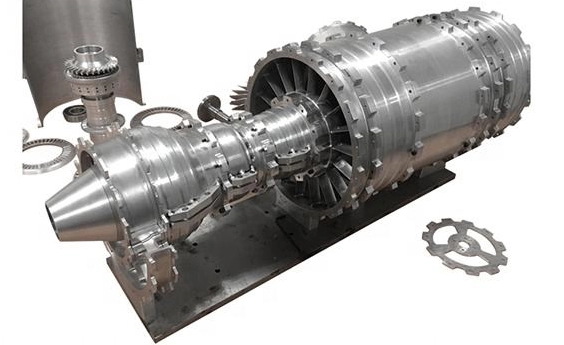

Gas Turbines: Impellers, rotating at 20,000-50,000 RPM, convert high-temperature, high-pressure gas kinetic energy into mechanical energy, driving generators or aircraft engines, with applications in power generation (up to 500 MW) and aviation.
Hydro Turbines: Impellers harness water flow (5-50 m/s) to generate electricity, with mixed-flow or axial designs achieving efficiencies of 90-95%, used in hydroelectric dams for renewable energy production.
Wind Power Systems (Horizontal and Vertical Axis):
Horizontal Axis Wind Turbines: Impellers with 2-3 blades (diameter 40-120 m) capture wind energy at 10-25 m/s, adjusting speeds (10-20 RPM) for 1-5 MW output, widely used in wind farms for clean energy.
Vertical Axis Wind Turbines: Impellers with unique vertical designs (diameter 5-20 m) operate at low wind speeds (3-15 m/s), offering omnidirectional capability for urban or small-scale applications, with efficiencies of 30-40%.
Steam Turbines (Impulse and Reaction):
Impulse Steam Turbines: Impellers, rotating at 3000-6000 RPM, convert steam energy (pressure 10-50 bar) into mechanical energy, used in power plants with efficiencies of 85-90%.
Reaction Steam Turbines: Impellers utilize steam expansion (pressure 5-30 bar) for higher efficiency (90-95%), ideal for industrial drives, with impeller machining ensuring ±0.01 mm tolerances.
Hydraulic Systems (Pumps and Motors):
Hydraulic Pumps: Impellers rotate at 1000-3000 RPM, converting mechanical energy into hydraulic pressure (up to 3000 PSI), used in construction machinery and automation lines.
Hydraulic Motors: Impellers, driven by hydraulic oil (pressure 2000-5000 PSI), convert hydraulic energy to mechanical output, powering molds or ship rudders, with efficiencies of 85-90%.
Jet Engine Systems (Turbofan and Turbojet):

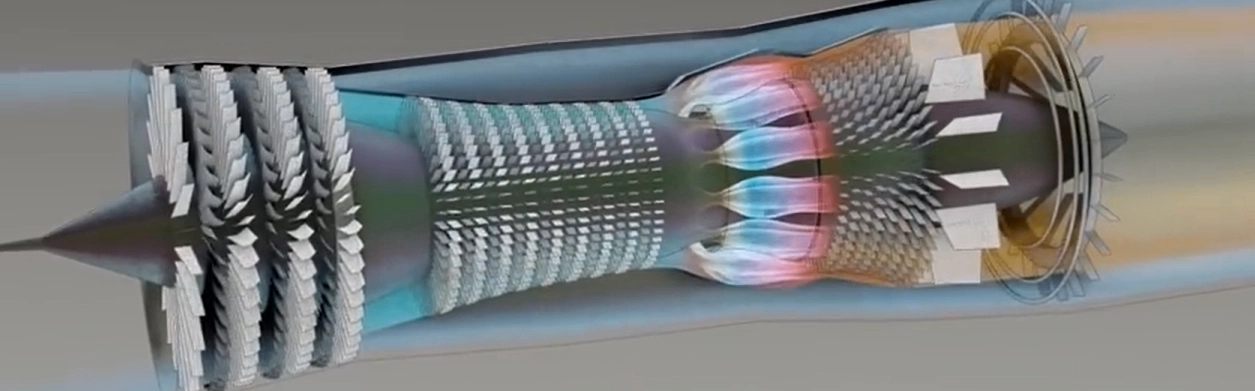

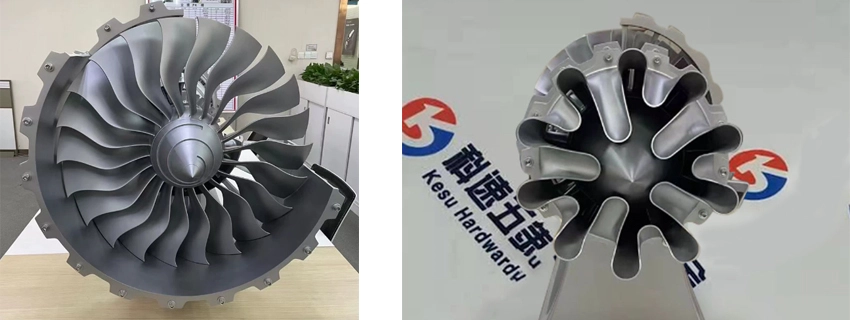

Turbofan Engines: Fan impellers (diameter 1-3 m) and compressor impellers rotate at 5000-15,000 RPM, compressing air for thrust and combustion, used in commercial jets with efficiencies of 80-85%.
Turbojet Engines: Turbine impellers, rotating at 20,000-40,000 RPM, drive compressors for high-speed flight, critical for missiles and fighter jets, with KeSu ensuring precision to ±0.01 mm.
Stirling Engine Systems:
Stirling Engine Impellers (if applicable): In some designs, impellers assist gas circulation (300-1000 RPM) between hot and cold chambers, enhancing heat transfer efficiency (50-60%) for small-scale power generation or specialty applications.
Impeller Parameters and Their Impact on Power Systems
Impeller performance in power systems depends on geometric, motion, and performance parameters, optimized through KeSu's CNC machining with tolerances up to ±0.01 mm and surface finishes as low as Ra 0.4 µm.
Geometric Parameters:
Blade Shape: Backward-curved blades enhance efficiency (85-90%) in centrifugal pumps, while forward-curved blades improve flow in low-pressure systems. Radial blades suit high-pressure applications, with KeSu impeller machining to ±0.01 mm precision.
Blade Number: 6-12 blades optimize flow (50-5000 GPM) and pressure (up to 300 meters head), with fewer blades (4-6) for high-speed turbines (e.g., 20,000 RPM), increasing efficiency by 5-10%.
Impeller Diameter and Width: Diameters of 100-500 mm and widths of 20-200 mm affect power output (1-500 MW) and flow range, with larger diameters boosting efficiency by 10-15% in hydro turbines.
Motion Parameters:
Rotational Speed: Speeds of 1000-50,000 RPM directly impact power (0.1-500 MW) and flow, with higher speeds increasing pressure but requiring ±0.01 mm tolerances for stability.
Peripheral Speed: Ranging from 20-120 m/s, peripheral speed influences energy transfer efficiency (80-95%), correlating with fluid velocity and pressure in compressors and turbines.
Performance Parameters:
Flow Rate: Impeller design determines flow from 50 GPM to 10,000 GPM, adjustable via blade shape and number, with KeSu ensuring stability through CNC machining.
Head or Pressure Ratio: Heads of 5-300 meters in pumps or pressure ratios of 2:1-10:1 in compressors depend on impeller geometry, optimized for applications like hydropower or gas pipelines.
Efficiency: Efficiencies of 75-95% are achieved by minimizing friction (0.5-2% loss) and impact losses, using advanced manufacturing like KeSu's five-axis centers for Ra 0.4 µm finishes.
Parameter | Range | Impact on Performance | KeSu Capability |
Blade Shape | Backward, Forward, Radial | Efficiency 75-90%, Flow 50-5000 GPM | ±0.01 mm tolerance, Ra 0.4 µm |
Blade Number | 4-12 | Flow Stability, Pressure Increase 5-10% | 5-axis CNC, 1-2 day lead time |
Impeller Diameter | 50-500 mm | Power Output 0.1-500 MW, Efficiency +10-15% | Precision machining, 3-7 days for batches |
Rotational Speed | 1000-50,000 RPM | Power 0.1-500 MW, Pressure Up to 3000 PSI | ±0.01 mm, High-speed cutting |
Conclusion and Future Innovations for Impellers
Impellers are the heart of power systems, driving efficiency and performance across pumps, compressors, turbines, and renewable energy applications. Their optimal design and precise parameters, as machined by KeSu with ±0.01 mm tolerances and lead times from 1 day, are crucial for enhancing system capabilities. Future innovations, such as advanced composite materials (e.g., carbon fiber-reinforced polymers, 150,000 PSI ultimate strength) and 3D-printed impellers with complex geometries, promise higher efficiencies (up to 95%) and lighter designs for wind and jet engines, supported by KeSu's rapid prototyping expertise.
KeSu specializes in manufacturing high-quality impellers using advanced CNC machining and rapid prototyping, with a focus on precision, durability, and custom production solutions. Partner with our CNC factory for reliable, cost-effective impeller parts that enhance performance and meet strict industry standards, delivered in 1-14 days based on volume.
Frequently Asked Questions (FAQ)
What is the primary role of impellers in power systems?
Impellers transfer energy between mechanical systems and fluids, generating pressure, flow, or thrust in pumps, compressors, turbines, and wind systems, with efficiencies of 75-95%, machined to ±0.01 mm tolerances by KeSu.
How does KeSu ensure precision in impeller manufacturing?
KeSu uses five-axis CNC machining centers like GMU-800 and HEM500U, achieving tolerances up to ±0.01 mm and surface finishes as low as Ra 0.4 µm, with lead times from 1 day for prototypes.
What materials are used for impellers in power systems?
KeSu uses titanium 6AL-4V (ultimate strength 131,000 PSI), aluminum 7075 (ultimate strength 83,000 PSI), and stainless steel 304 (ultimate strength 84,000-170,000 PSI) for impellers, ensuring durability and performance.
How do impeller parameters affect power system efficiency?
Blade shape, number, diameter, and speed impact efficiency (75-95%), flow (50-10,000 GPM), and pressure (up to 300 meters head), optimized through KeSu's precision machining and testing.
What future innovations are expected for impellers?
Future impellers may use composite materials (150,000 PSI) and 3D printing for complex geometries, achieving efficiencies up to 95% and lighter designs for renewable energy and jet engines, supported by KeSu's rapid prototyping.
